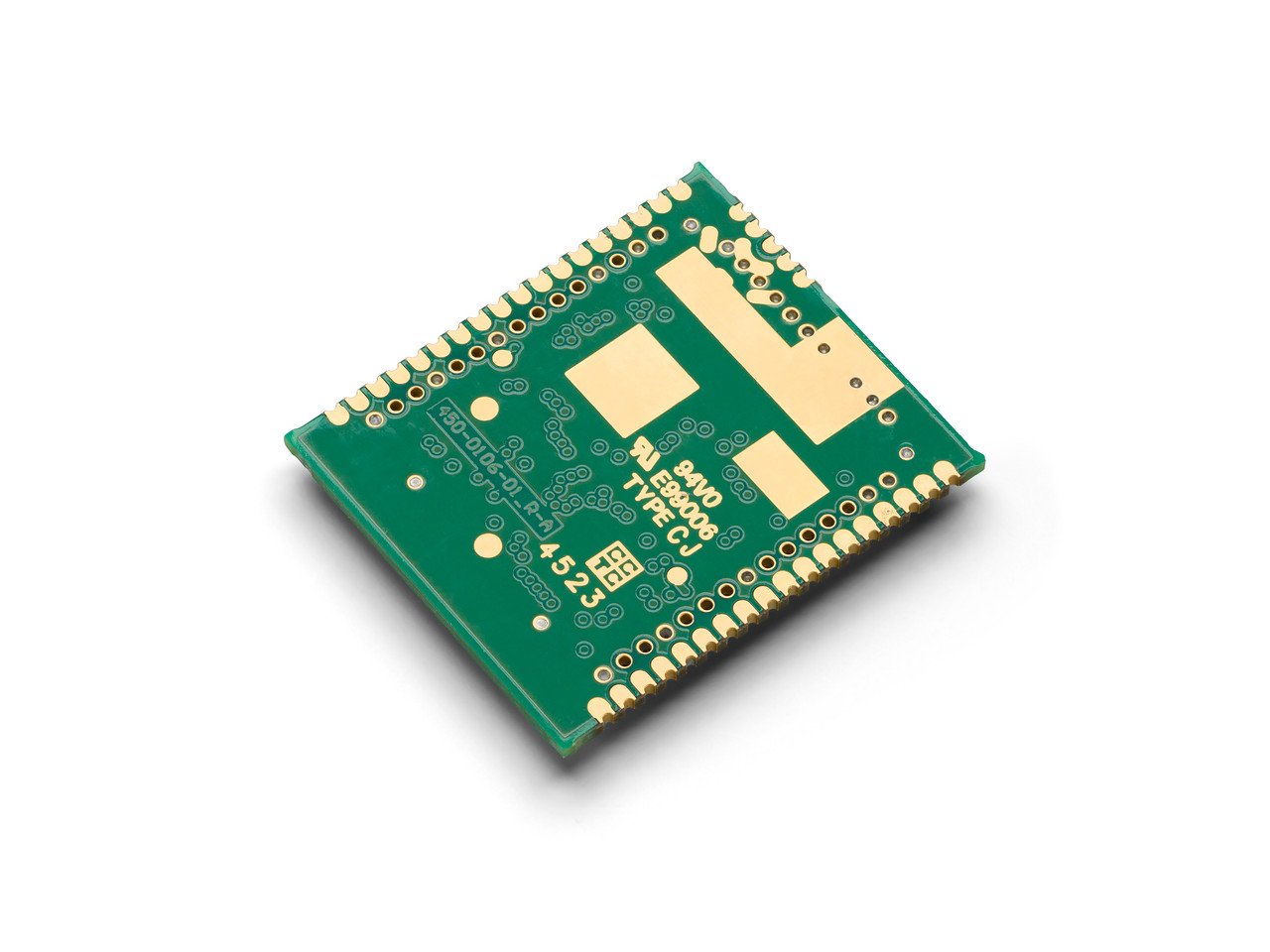

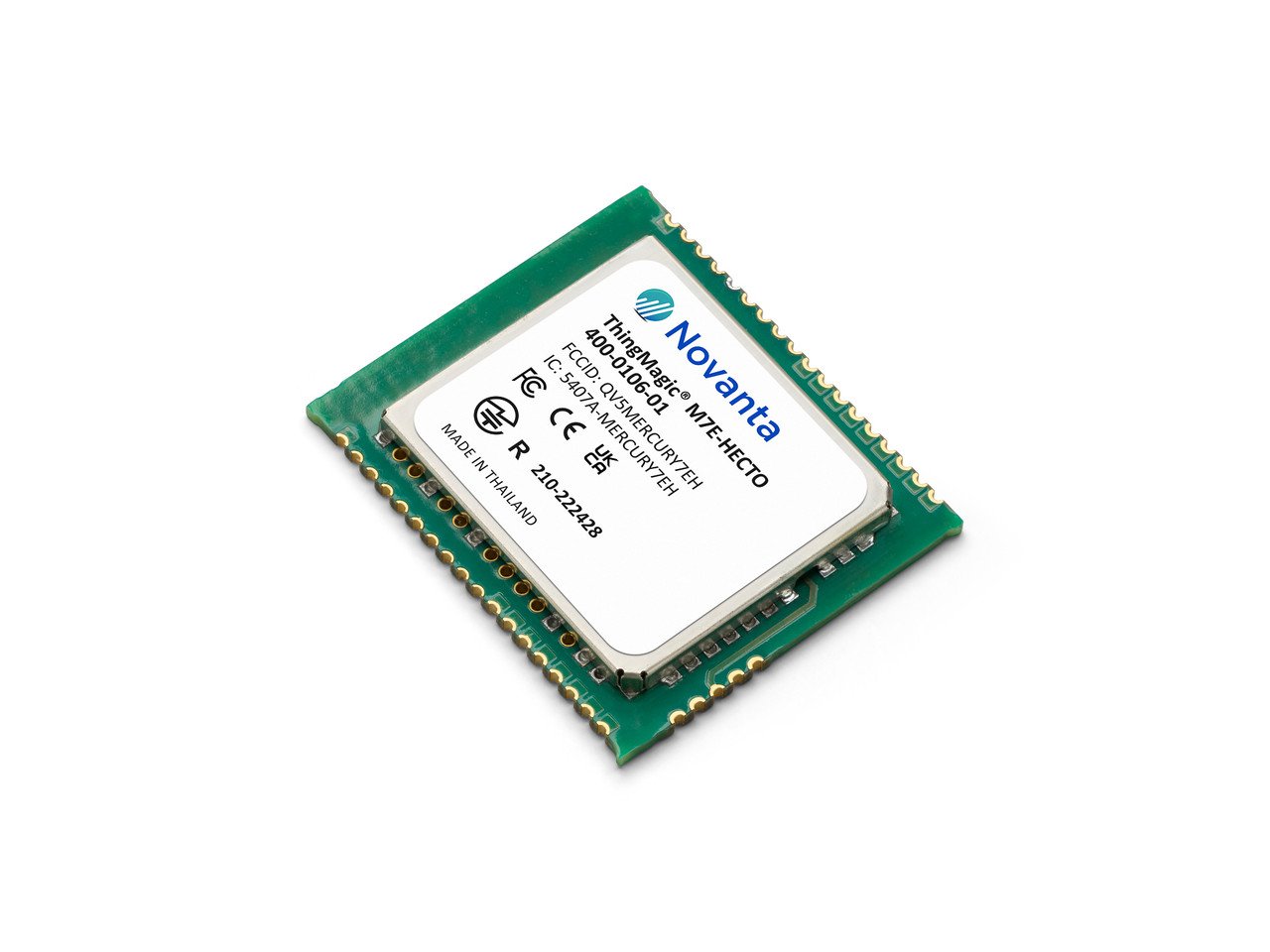

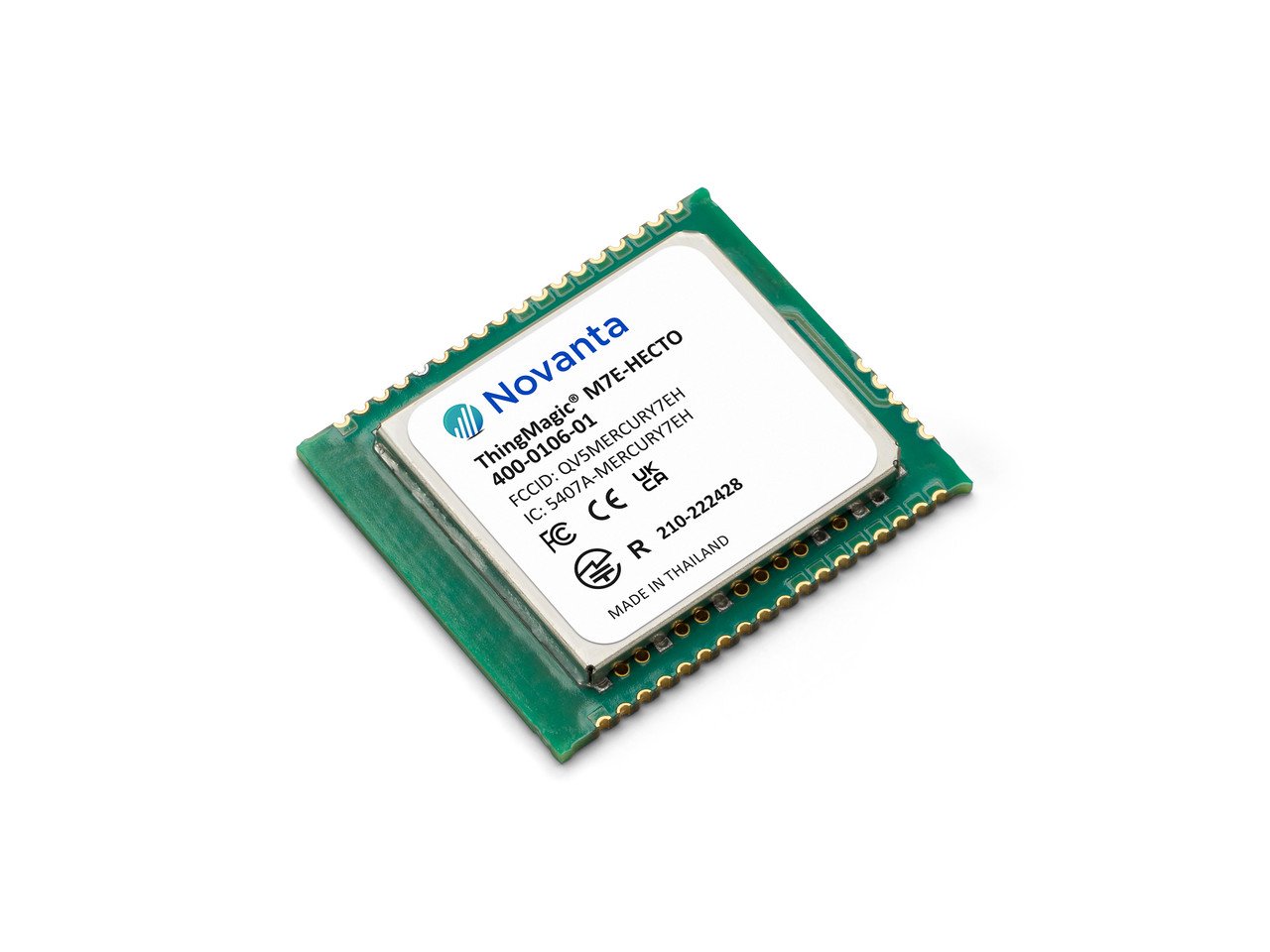

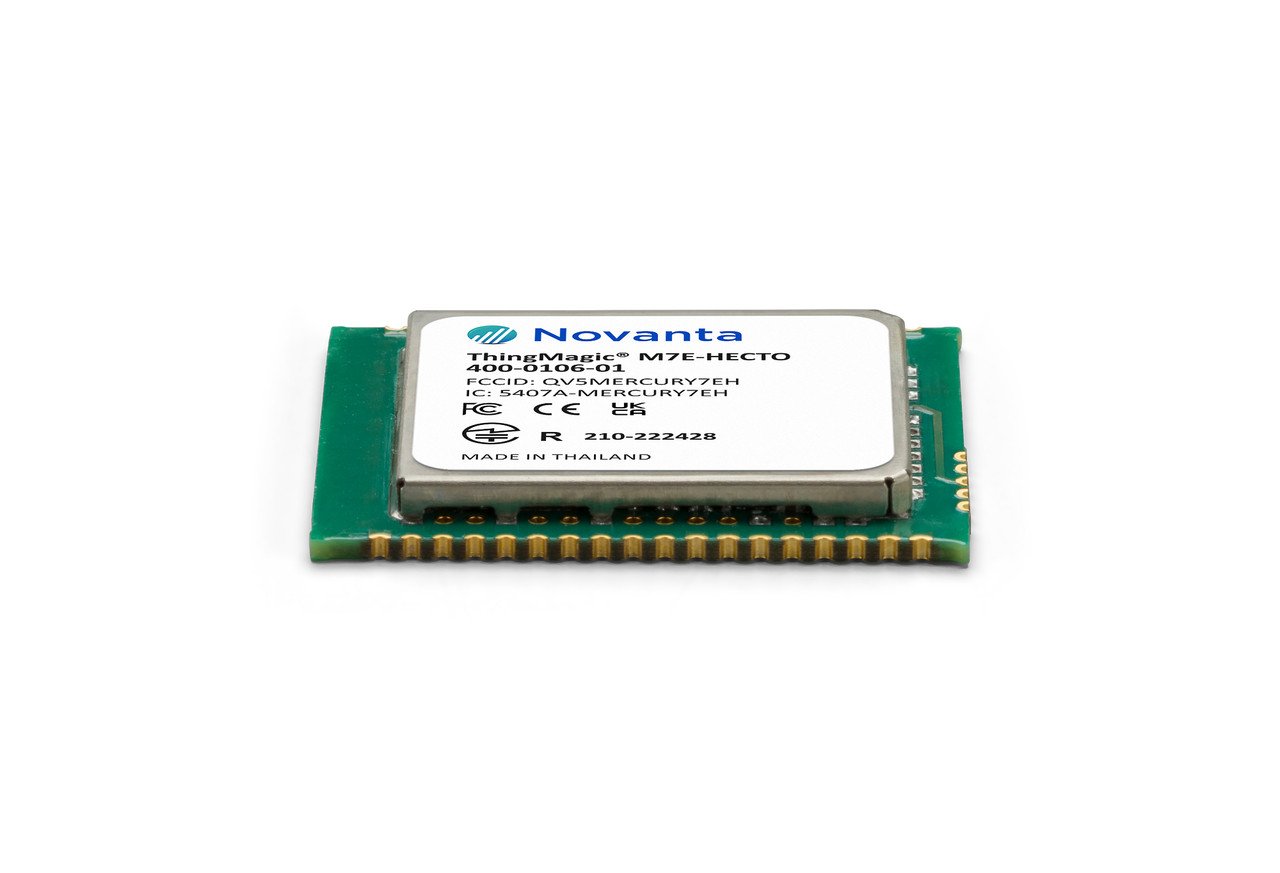

ThingMagic M7E-HECTO UHF RAIN RFID Reader Module
ThingMagic M7E-HECTO UHF RAIN RFID Reader Module
The ThingMagic M7E-HECTO emerges as a compact, power-optimized UHF RAIN RFID module. With its remarkably low power consumption, the M7E-HECTO proves ideal for battery-operated, cost-effective, and small form-factor portable readers. Boasting a wide RF output range spanning from 0 dBm to +27 dBm, it fulfills crucial read/write requirements for RFID-enabled printers and tag commissioning stations. Featuring a surface mount package tailored for SMT manufacturing efficiency, the M7E-HECTO significantly reduces the total cost associated with embedding RFID in high-volume applications. It excels in applications such as handheld devices, consumables authentication, device configuration, and access control. Additionally, the M7E-HECTO is fully supported by the ThingMagic Mercury API, ensuring seamless integration and versatility.
Features & Benefits:
- Small Surface Mount Technology (SMT) Form Factor for Highly Integrated, Compact Designs
- Low Power Consumption for Efficient Battery-Use
- Features the Impinj E310 RAIN RFID Reader Chip
- Support for EPCglobal Gen2V2 (ISO 18000-63) Protocol Meets Industry Tag Standards • Reads up to 300* tags / second
- Configured for Multiple Regions, such as FCC / ISED (North & South America), ETSI (European Union), and Other Regions Including UAE, China, Korea, Australia and Japan
- Single SKU for Global Use
- Support for full Open region (860 to 930MHZ)
- Module Size and Feature Set comparable to ThingMagic M6e-Nano
- Provides better sensitivity, supports more GEN2 profiles and wider range of custom tag commands compared to ThingMagic M6e-Nano
Applications:
- Medical Equipment for Healthcare and Pharmaceutical Industries
- Kiosks and Vending Machines
- Mobile Devices, including Printers, Handhelds, and Sensor Networks
- Tag Commissioning Stations
- Battery-operated
- Smartphone Accessories
What’s included?
- ThingMagic M7e-HECTO UHF RAIN RFID Reader Module
Product Summary
The ThingMagic M7E-HECTO is a compact, power-optimized UHF RAIN RFID reader module. Featuring the Impinj E310 chip, it boasts a low power consumption, reading up to 300 tags/second with a 15-foot range. Its small SMT form factor is ideal for embedding RFID in high-volume, battery-operated devices like handhelds, mobile printers, and vending machines across global applications.
