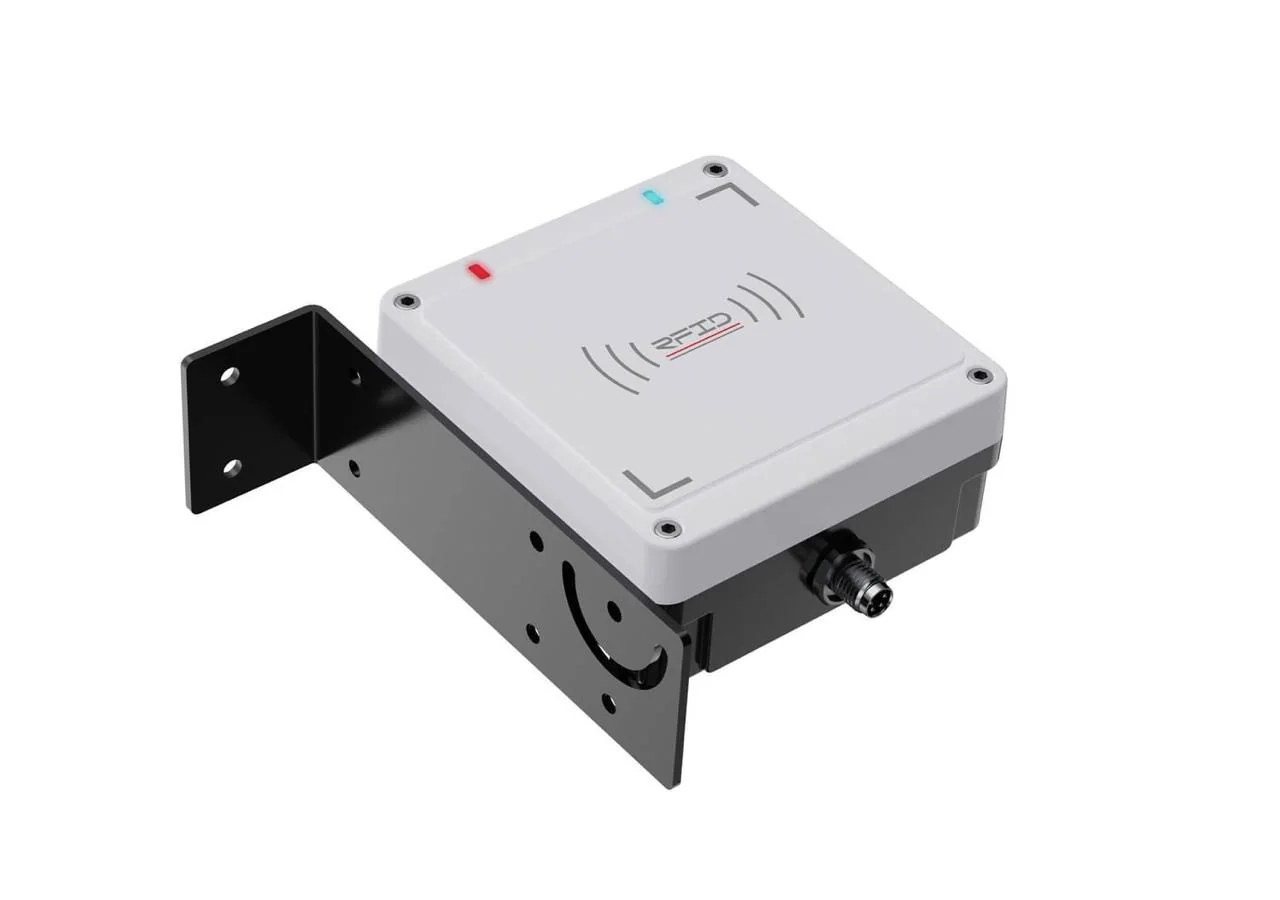

RFID antennas shape the read zone: they determine polarization, coverage, spill, near-field behaviour and how tags interact with the surrounding environment. A useful antenna directory compares panel, circular, linear, near-field, shelf, ceiling, portal and outdoor forms against geometry and tag orientation. Swedish Technology uses the directory as a design aid, then validates the chosen antenna on site.
Swedish Technology frames antenna form factor and RF zone engineering around evidence, integration ownership and a measurable acceptance path rather than a catalogue claim.
What problem does this solve?
Antenna selection is often reduced to gain or a nominal range. That approach can create dead zones, cross-lane reads or poor performance when tags rotate, touch metal or move through a portal at speed.
The antenna, cable, reader power, polarization, mounting and filtering must be designed as one system. A replacement antenna that looks equivalent may change the zone enough to invalidate the previous tuning.
How the solution works
The directory first classifies the physical read task: directional portal, broad warehouse coverage, short-range workpoint, shelf/cabinet, conveyor, ceiling or outdoor exposure. It then records polarization, beam shape, gain, environmental rating, connector, cable loss and mounting constraints.
Times-7 examples such as the A5020 family and near-field ranges can be researched from official documentation, but the selected model remains a preliminary recommendation until the actual zone is measured.
- 1Scope Confirm the antenna form factor and RF zone engineering, business owner, assets, sites and acceptance outcome before selecting hardware.
- 2Survey Record materials, geometry, movement, network, power, security and the exceptions that a normal demo would miss.
- 3Select Shortlist categories and current model examples using official sources; mark the result as preliminary until validation.
- 4Pilot Test representative assets and users with the planned reader, antenna, tag, application and integration path.
- 5Accept Measure read behaviour, event correctness, exception handling, security and support handover against written criteria.
Reference architecture
The reference architecture for RFID Antenna Directory and Read-Zone Selection separates the physical RFID layer, event-processing layer, system of record and support controls.
| Layer | What it contains |
|---|---|
| Physical layer | Tags, readers, antennas, printer or mobile device selected for the material and process. |
| Event layer | Filtering, identity resolution, zone logic, buffering and audit state. |
| Business layer | Application, ERP, WMS, EAM, GIS or workflow that owns the business transaction. |
| Operations layer | Monitoring, security, backup, upgrades, training and support evidence. |
Deployment options: Deploy on-premise, edge or UAE-region private cloud according to data residency, connectivity, security and operating requirements.
Key capabilities
Polarization and beam-shape comparison
A practical control for antenna form factor and RF zone engineering with an explicit owner and validation step.
availableNear-field versus far-field screening
A practical control for antenna form factor and RF zone engineering with an explicit owner and validation step.
availableCable loss and mounting review
A practical control for antenna form factor and RF zone engineering with an explicit owner and validation step.
custom developmentRead-zone acceptance test design
A practical control for antenna form factor and RF zone engineering with an explicit owner and validation step.
custom developmentIntegrations
Integration for RFID Antenna Directory and Read-Zone Selection is event-led: the target business system remains the system of record, while the RFID layer supplies validated observations and exceptions.
| System | Integration point & data exchanged | Direction |
|---|---|---|
| Fixed reader | Match antenna ports, impedance, power and cable length to the reader installation. → Fixed RFID Readers for Gates, Dock Doors and Workpoints | bi-directional |
| Gate sensors | Use triggers and movement direction to define when a zone is active. → RFID Gate System Design & Tuning | bi-directional |
| Middleware | Apply zone, dwell and direction rules after the RF layer is tuned. → RFID Read Accuracy: Missed Reads, Metal & Liquids | bi-directional |
Industry use cases
Warehouse portals
Constrain movement and reduce unwanted reads between adjacent lanes.
Packing and workpoints
Create short, controlled read zones for verification and encoding.
Cabinets and shelves
Use near-field or localized designs where broad coverage would be unsafe.
UAE & GCC considerations
For UAE and GCC projects, confirm the UHF region and type-approval position, data residency, Arabic/English operating needs, network segmentation, local support, acceptance evidence and handover obligations before procurement. The final model, power and deployment recommendation must be checked against the entity's environment and applicable controls.
Implementation approach
- 1Scope Confirm the antenna form factor and RF zone engineering, business owner, assets, sites and acceptance outcome before selecting hardware.
- 2Survey Record materials, geometry, movement, network, power, security and the exceptions that a normal demo would miss.
- 3Select Shortlist categories and current model examples using official sources; mark the result as preliminary until validation.
- 4Pilot Test representative assets and users with the planned reader, antenna, tag, application and integration path.
- 5Accept Measure read behaviour, event correctness, exception handling, security and support handover against written criteria.
Security & deployment
Use least-privilege service accounts, segmented reader networks, protected certificates and an auditable event trail. Keep configuration backups, firmware baselines and support ownership with the operating entity; do not expose raw reader credentials to every consuming application.
Limitations & prerequisites
- Gain does not equal reliable application coverage.
- Cables and connectors can introduce loss or intermittent faults.
- Antenna performance changes with metal, liquid, enclosure and mounting geometry.
- Final selection needs a physical survey and representative tags.
Selection view for RFID Antenna Directory and Read-Zone Selection
The correct choice depends on the operating question, physical environment and lifecycle—not on a single headline specification.
| Decision | Starting point | Validation needed |
|---|---|---|
| Physical environment | Use the category that matches material and geometry | Sample test on representative assets |
| Capture method | Handheld, fixed, near-field or mixed | Measure the actual process and exceptions |
| Integration | Use an event layer and existing system of record | Trace one transaction end to end |
| Commercial step | Preliminary recommendation | Survey, PoC, BoQ or quotation |
Treat every model result as preliminary until the selected hardware, software, integration and acceptance evidence are reviewed together.
FAQ
Circular polarization tolerates more tag rotation; linear polarization can be more directional when the tag orientation is controlled.
Near-field designs suit short, precise workpoints or shelves where a broad far-field zone would cause unwanted reads.
Not safely. The radiation pattern, polarization and power relationship can change, so the read-zone test should be repeated.
Physical spacing, directional patterns, shielding where appropriate, power control, triggers and event filtering work together.
The model depends on application, geometry, environment and polarization; use the official comparison data as a starting point, not a final guarantee.
Expected tags, nearby tags, different orientations, movement speed, repeated passes, dense loads and failure recovery should all be measured.
