An RFID tag directory should start with the asset material, mounting method and operating environment, not with a model number. Swedish Technology can help compare printable labels, on-metal tags, cable-tie, ceramic, laundry, vehicle and rugged outdoor formats, then validate the shortlist on representative assets before a quotation or rollout.
Swedish Technology frames tag families and application fit around evidence, integration ownership and a measurable acceptance path rather than a catalogue claim.
What problem does this solve?
RFID tags that look similar in a catalogue behave differently on metal, liquids, curved surfaces and dense stacks. Choosing from a generic label list often produces missed reads, adhesive failures or a tag that cannot be encoded by the planned printer.
The useful decision is a controlled match between asset, mounting area, environment, reader, antenna and business process. A sample test must include the worst asset and the actual read point, not only an easy carton on a desk.
How the solution works

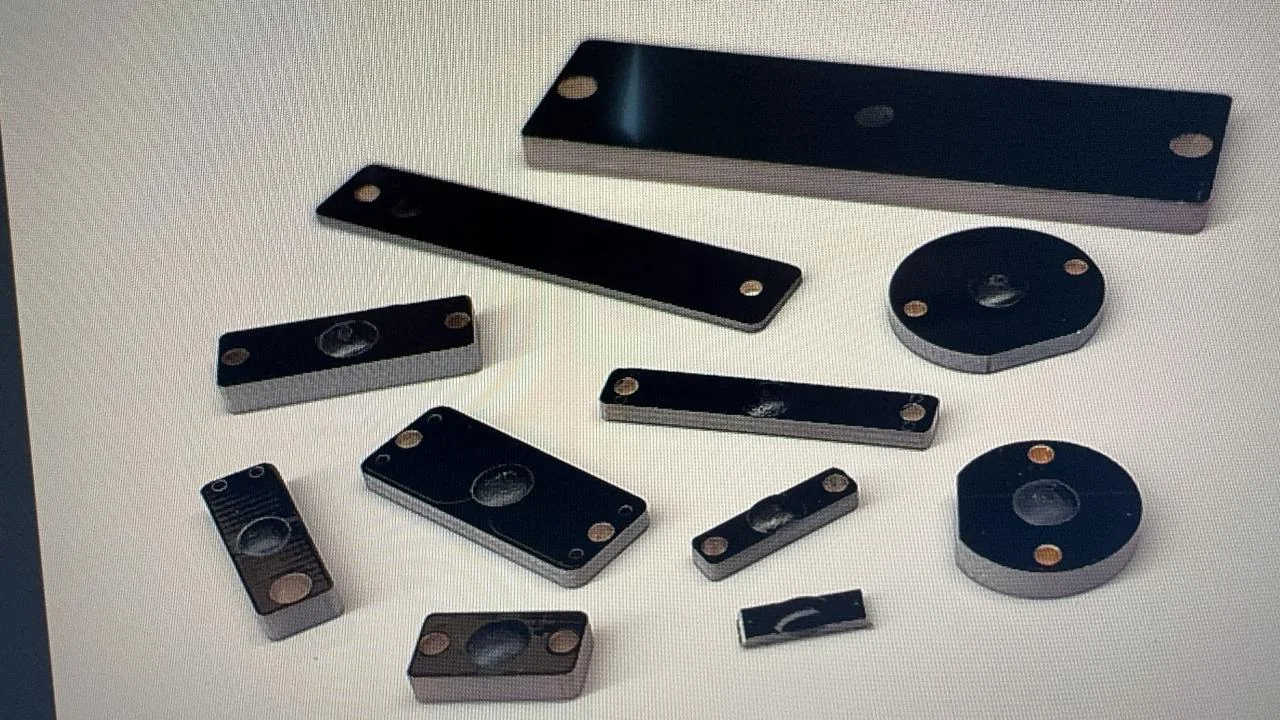

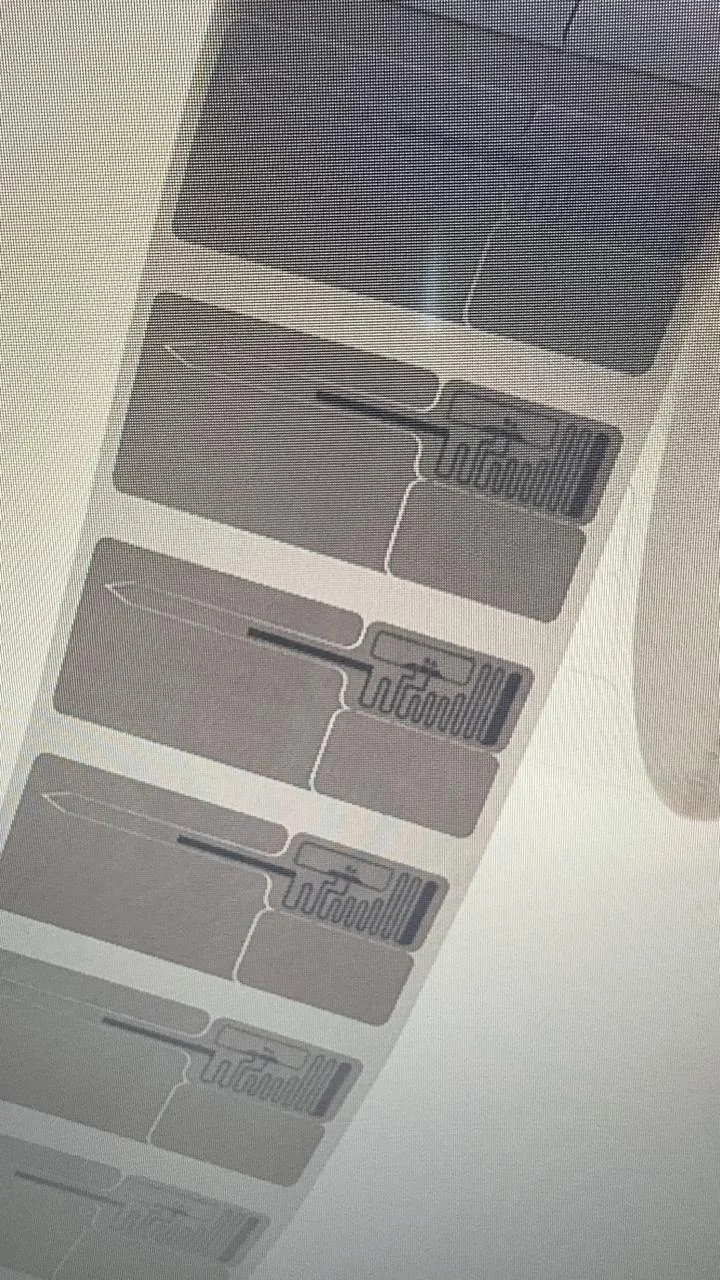

The directory separates tag construction from use case: standard printable labels for cartons, spacer-backed on-metal tags for equipment, rugged encapsulated tags for tools and vehicles, and washable textile tags for garments. It records the mounting method, temperature, chemical exposure, expected read behaviour and fallback identification.
Recommendations remain preliminary until a sample test confirms orientation, read rate, encoding quality and lifecycle behaviour in the intended site.
- 1Scope Confirm the tag families and application fit, business owner, assets, sites and acceptance outcome before selecting hardware.
- 2Survey Record materials, geometry, movement, network, power, security and the exceptions that a normal demo would miss.
- 3Select Shortlist categories and current model examples using official sources; mark the result as preliminary until validation.
- 4Pilot Test representative assets and users with the planned reader, antenna, tag, application and integration path.
- 5Accept Measure read behaviour, event correctness, exception handling, security and support handover against written criteria.
Reference architecture
The reference architecture for RFID Tag Directory and Selection Guide separates the physical RFID layer, event-processing layer, system of record and support controls.
| Layer | What it contains |
|---|---|
| Physical layer | Tags, readers, antennas, printer or mobile device selected for the material and process. |
| Event layer | Filtering, identity resolution, zone logic, buffering and audit state. |
| Business layer | Application, ERP, WMS, EAM, GIS or workflow that owns the business transaction. |
| Operations layer | Monitoring, security, backup, upgrades, training and support evidence. |
Deployment options: Deploy on-premise, edge or UAE-region private cloud according to data residency, connectivity, security and operating requirements.
Key capabilities
Material and environment questionnaire
A practical control for tag families and application fit with an explicit owner and validation step.
availablePrintable versus rugged form-factor comparison
A practical control for tag families and application fit with an explicit owner and validation step.
availableOn-metal and liquid-asset screening
A practical control for tag families and application fit with an explicit owner and validation step.
custom developmentSample-test and encoding checklist
A practical control for tag families and application fit with an explicit owner and validation step.
custom developmentIntegrations
Integration for RFID Tag Directory and Selection Guide is event-led: the target business system remains the system of record, while the RFID layer supplies validated observations and exceptions.
| System | Integration point & data exchanged | Direction |
|---|---|---|
| RFID printer/encoder | Check inlay pitch, media path, encoding verification and rejected-label handling before ordering media. → RFID Asset Tracking for Enterprise & Government | bi-directional |
| WMS/ERP | Bind EPC or serial identity to the system of record during commissioning rather than creating a second master. → RFID Inventory Management & Warehouse Systems | bi-directional |
| Asset register | Keep a human-readable identifier and barcode fallback for exceptions and manual recovery. → RFID Site Survey & POC Checklist | bi-directional |
Industry use cases
Warehousing
Carton, pallet and location labels with receiving and dispatch verification.
Government assets
On-metal, tool and IT equipment tags for periodic audit and custody workflows.
Healthcare and laundry
Textile and washable tags selected against heat, chemicals and repeated handling.
UAE & GCC considerations
For UAE and GCC projects, confirm the UHF region and type-approval position, data residency, Arabic/English operating needs, network segmentation, local support, acceptance evidence and handover obligations before procurement. The final model, power and deployment recommendation must be checked against the entity's environment and applicable controls.
Implementation approach
- 1Scope Confirm the tag families and application fit, business owner, assets, sites and acceptance outcome before selecting hardware.
- 2Survey Record materials, geometry, movement, network, power, security and the exceptions that a normal demo would miss.
- 3Select Shortlist categories and current model examples using official sources; mark the result as preliminary until validation.
- 4Pilot Test representative assets and users with the planned reader, antenna, tag, application and integration path.
- 5Accept Measure read behaviour, event correctness, exception handling, security and support handover against written criteria.
Security & deployment
Use least-privilege service accounts, segmented reader networks, protected certificates and an auditable event trail. Keep configuration backups, firmware baselines and support ownership with the operating entity; do not expose raw reader credentials to every consuming application.
Limitations & prerequisites
- A tag is not a reader; range and accuracy depend on the complete RF design.
- A model name or datasheet range is not a guaranteed site result.
- Samples must be tested on the real material and attachment surface.
- Regional frequency and type-approval requirements must be checked before procurement.
Selection view for RFID Tag Directory and Selection Guide
The correct choice depends on the operating question, physical environment and lifecycle—not on a single headline specification.
| Decision | Starting point | Validation needed |
|---|---|---|
| Physical environment | Use the category that matches material and geometry | Sample test on representative assets |
| Capture method | Handheld, fixed, near-field or mixed | Measure the actual process and exceptions |
| Integration | Use an event layer and existing system of record | Trace one transaction end to end |
| Commercial step | Preliminary recommendation | Survey, PoC, BoQ or quotation |
Treat every model result as preliminary until the selected hardware, software, integration and acceptance evidence are reviewed together.
FAQ
Usually an on-metal construction with a spacer or engineered antenna, but the exact choice depends on surface size, curvature, reader geometry and mounting method.
No. Media pitch, printer compatibility, inlay construction and encoding orientation must be checked together.
Use several candidate constructions and include the hardest assets, read points and handling conditions before selecting a production tag.
Normally the EPC identifies the asset and the system of record holds business data; user memory is used only when the design has a clear reason.
Some rugged tags are suitable, but heat, UV, dust, chemicals, mounting and regional radio requirements must be validated.
We can make a preliminary recommendation and confirm it through sample testing, site survey and a documented acceptance plan.
Need a preliminary RFID recommendation?
Send the use case, asset or site details and target systems. We will identify the information needed for a sample, survey, PoC, BoQ or quotation.
Request an RFID AssessmentRFID Asset Management System
Swedish Technology supplies the complete RFID stack — UHF tags, handheld and fixed readers, gates, antennas, printers and the asset management platform — with the integration and RF engineering behind it.
Request RFID Solution PricingSources & evidence
- HID IronTag UHF tags — Official example for harsh on-metal tags; exact model selection remains a validation step.
- Xerafy PICO series — Official example for small rugged on-metal tags.
- GS1 RFID standards and EPC data — Reference for passive UHF air-interface and EPC identity; verify the final deployment profile.
- GS1 EPCIS and CBV — Reference for event capture and business vocabulary; not a substitute for the buyer's integration contract.
- NIST SP 800-98 RFID security guidance — Security reference for threat modelling RFID systems.
